SKU:EF-X2TOL
Echo Fix
Echo Fix EF-X2 Tolex Black
Echo Fix EF-X2 Tolex Black
Regular price
2.399,00 €
Regular price
Sale price
2.399,00 €
Unit price
/
per
Fast delivery, fast shipping
Couldn't load pickup availability
What’s New In The MKII?
After several years of production, the Echo Fix team has taken the opportunity to add a number of useful improvements to the EF-X2.

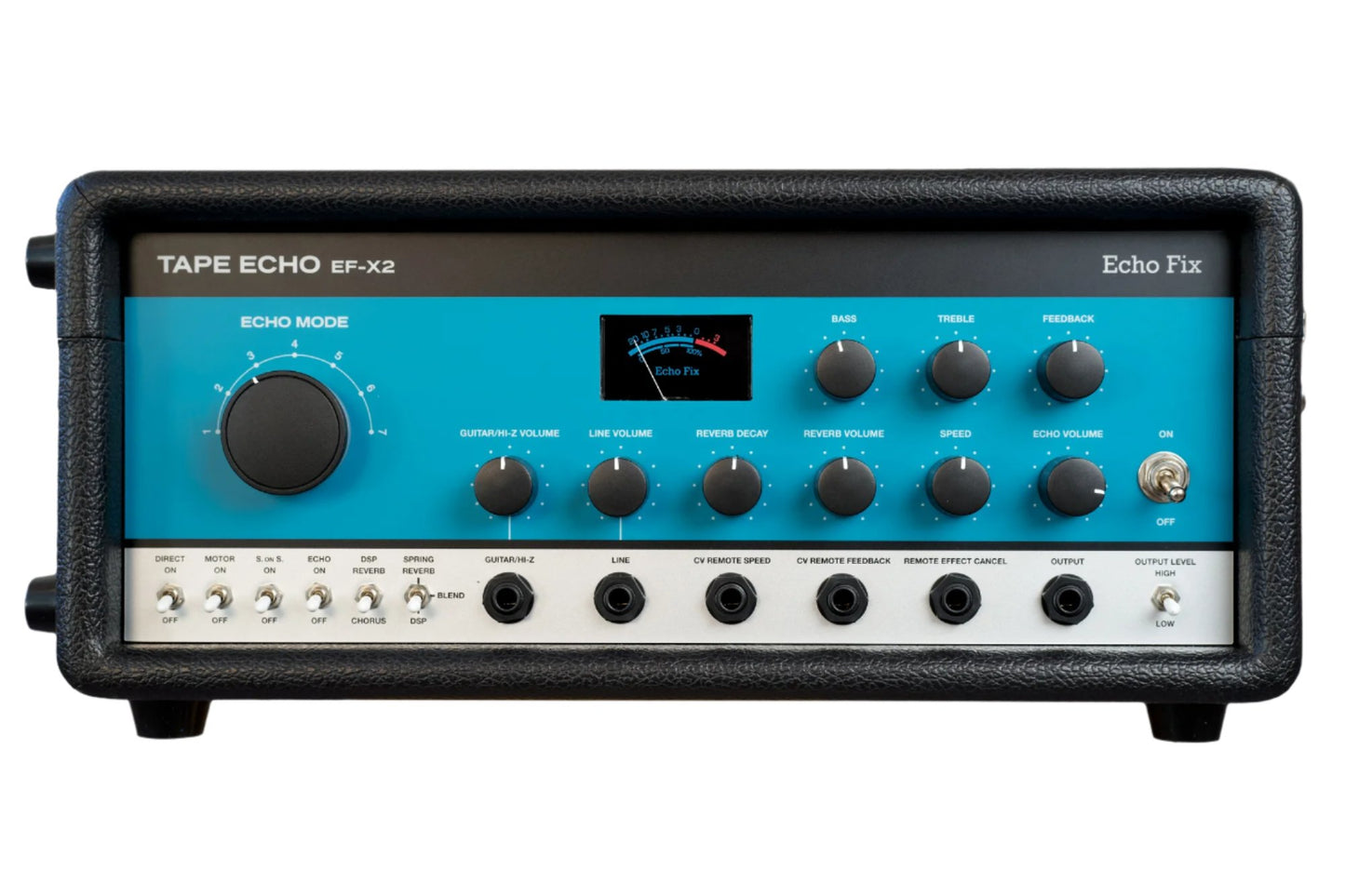

Toggle Switch Access:
The Spring Reverb and DSP switches can now be operated from the front panel. This makes it easier to toggle between the various effect settings, whether that’s spring reverb, DSP Reverb, DSP Chorus or a blend between analogue and digital effects. Users can also see the settings at a glance, without opening the lid of the tape echo.

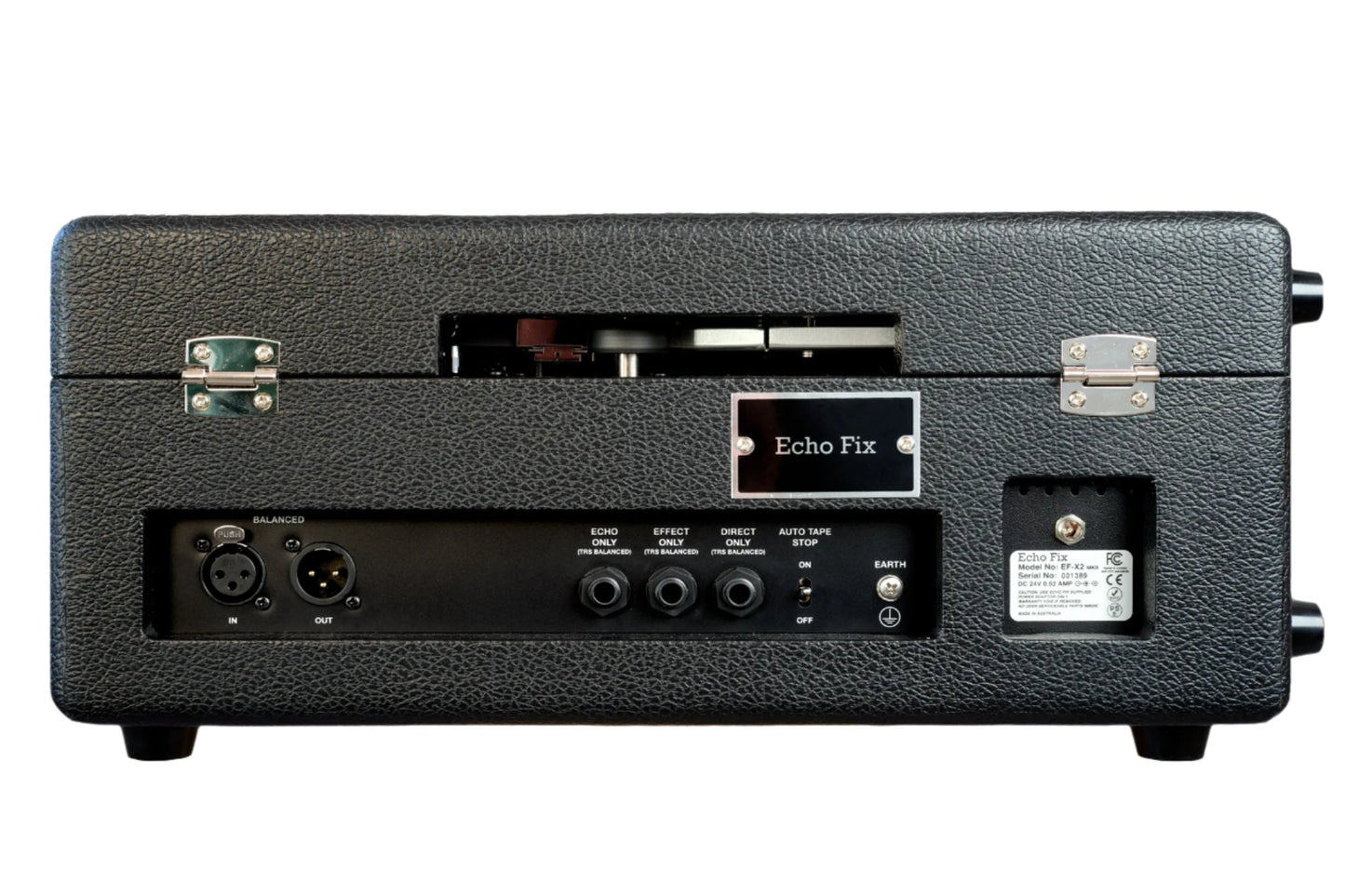

Rear Outputs:
The rear panel houses 3 TRS balanced outputs, allowing users to access a duplicate direct signal, a wet effect only signal (of the spring reverb and DSP), and the echo signal without the direct.
Auto Tape Stop:
The rear panel also includes the Auto Tape Stop On/Off toggle switch. This was designed to extend the life of the tape loop, motor, and roller, by disengaging these features when the echo unit is powered on, but not in use. With this switch in the ON position, the motor will turn off and the pinch roller will disengage after not receiving signal for approximately 5 minutes. Once the unit receives signal, the unit will operate as normal.
A classic effect, built for modern users - the EF-X2 MKII couples the sounds you know and love, with features and reliability unimaginable in the past. In designing the EF-X2 MKII, the team here at Echo Fix began with the knowledge and insight gained from our work as the world's foremost experts in spare parts, servicing and repairing vintage tape echo units. Put simply, we know how tape echos should sound and operate.
We spent three years prototyping, rigorously testing, and meticulously designing in secret - while accounting for every possible application. We couldn't find a new production motor good enough so we made our own and invested in the latest high tech machinery to custom balance them in house here at Echo Fix. We could not find tape heads that sounded good enough so we had custom tape heads manufactured to our exact specs.
One of the other important things when it comes to reliable tape echo operation is the tape loop. We thoroughly researched tape and have a tape formulation that not only lasts a very long time but sounds incredible as well, that is how far we were willing to go to make the EF-X2 MKII reliable and sound great!
What we have built is a warm sounding tape echo with a modern feature set that is at home in the professional recording studio, live guitar rig, bedroom production setup or in any other context you can dream up, we cannot wait for the EF-X2 MKII to become an integral part of your creative process.
PRODUCT FEATURES
Four core functions - Tape echo, Real Spring Reverb, DSP Reverb/Chorus and Preamp.
Vintage FET EP Guitar Preamp and Modern FET Line Input Pre-amp (both with 1Meg Impedance perfect for guitar. This gives you two pre-amp tones. Allows use of an ABY pedal (not included) to switch between both pre-amps.
DSP Reverb and Spring Reverb blend setting. Also allows Spring Reverb and Chorus blend.
Switch that converts the reverb section to chorus. This will allow you to switch back and forth from Reverb to Chorus effect.
Independent inputs (and level controls) for Instrument-level and Line-level applications, plus balanced input and output at rear.
Three echo playback heads, and a Sound On Sound Head giving 14 Head combination Settings in total.
Adjust the echo's Time and Feedback with Control Voltages (CV 0-5 volts) and compatible Expression Pedals.
Bass and Treble control of the echo signal.
Motor ON/Switch for tape slow down effect - or to conserve tape when only using the EF-X2's reverb or preamp.
Mute the reverb or echo signal with a dual foot switch pedal.
Comes with a worldwide-compatible, 100 - 240v power supply (no step-down or other transformers required).
Built tough to last, by someone who's repaired and upgraded more tape echo units than you can possibly imagine!
2 Years Warranty for all pre-sale purchases with peace of mind that this is made by a company that has been operating for over 10 years specialising in tape echo repair and spare parts.
High quality scratch resistant front panel.
2 Tape loops supplied with each unit.
Head Mode Settings
Mode 1 - Head 1
Mode 2 - Head 2
Mode 3 - Head 3
Mode 4 - Head 1 + 2
Mode 5 - Head 2 + 3
Mode 6 - Head 1 + 3
Mode 7 - Head 1 + 2 + 3
Sound On Sound is another head that can be switched on over the top of all the head mode settings.
Tape Speed - 4 IPS to 15 IPS
The dimensions including rubber feet and hardware:
420mm Length
290mm Depth
185mm Height
Weight: 11Kgs
After several years of production, the Echo Fix team has taken the opportunity to add a number of useful improvements to the EF-X2.
Toggle Switch Access:
The Spring Reverb and DSP switches can now be operated from the front panel. This makes it easier to toggle between the various effect settings, whether that’s spring reverb, DSP Reverb, DSP Chorus or a blend between analogue and digital effects. Users can also see the settings at a glance, without opening the lid of the tape echo.
Rear Outputs:
The rear panel houses 3 TRS balanced outputs, allowing users to access a duplicate direct signal, a wet effect only signal (of the spring reverb and DSP), and the echo signal without the direct.
Auto Tape Stop:
The rear panel also includes the Auto Tape Stop On/Off toggle switch. This was designed to extend the life of the tape loop, motor, and roller, by disengaging these features when the echo unit is powered on, but not in use. With this switch in the ON position, the motor will turn off and the pinch roller will disengage after not receiving signal for approximately 5 minutes. Once the unit receives signal, the unit will operate as normal.
A classic effect, built for modern users - the EF-X2 MKII couples the sounds you know and love, with features and reliability unimaginable in the past. In designing the EF-X2 MKII, the team here at Echo Fix began with the knowledge and insight gained from our work as the world's foremost experts in spare parts, servicing and repairing vintage tape echo units. Put simply, we know how tape echos should sound and operate.
We spent three years prototyping, rigorously testing, and meticulously designing in secret - while accounting for every possible application. We couldn't find a new production motor good enough so we made our own and invested in the latest high tech machinery to custom balance them in house here at Echo Fix. We could not find tape heads that sounded good enough so we had custom tape heads manufactured to our exact specs.
One of the other important things when it comes to reliable tape echo operation is the tape loop. We thoroughly researched tape and have a tape formulation that not only lasts a very long time but sounds incredible as well, that is how far we were willing to go to make the EF-X2 MKII reliable and sound great!
What we have built is a warm sounding tape echo with a modern feature set that is at home in the professional recording studio, live guitar rig, bedroom production setup or in any other context you can dream up, we cannot wait for the EF-X2 MKII to become an integral part of your creative process.
PRODUCT FEATURES
Four core functions - Tape echo, Real Spring Reverb, DSP Reverb/Chorus and Preamp.
Vintage FET EP Guitar Preamp and Modern FET Line Input Pre-amp (both with 1Meg Impedance perfect for guitar. This gives you two pre-amp tones. Allows use of an ABY pedal (not included) to switch between both pre-amps.
DSP Reverb and Spring Reverb blend setting. Also allows Spring Reverb and Chorus blend.
Switch that converts the reverb section to chorus. This will allow you to switch back and forth from Reverb to Chorus effect.
Independent inputs (and level controls) for Instrument-level and Line-level applications, plus balanced input and output at rear.
Three echo playback heads, and a Sound On Sound Head giving 14 Head combination Settings in total.
Adjust the echo's Time and Feedback with Control Voltages (CV 0-5 volts) and compatible Expression Pedals.
Bass and Treble control of the echo signal.
Motor ON/Switch for tape slow down effect - or to conserve tape when only using the EF-X2's reverb or preamp.
Mute the reverb or echo signal with a dual foot switch pedal.
Comes with a worldwide-compatible, 100 - 240v power supply (no step-down or other transformers required).
Built tough to last, by someone who's repaired and upgraded more tape echo units than you can possibly imagine!
2 Years Warranty for all pre-sale purchases with peace of mind that this is made by a company that has been operating for over 10 years specialising in tape echo repair and spare parts.
High quality scratch resistant front panel.
2 Tape loops supplied with each unit.
Head Mode Settings
Mode 1 - Head 1
Mode 2 - Head 2
Mode 3 - Head 3
Mode 4 - Head 1 + 2
Mode 5 - Head 2 + 3
Mode 6 - Head 1 + 3
Mode 7 - Head 1 + 2 + 3
Sound On Sound is another head that can be switched on over the top of all the head mode settings.
Tape Speed - 4 IPS to 15 IPS
The dimensions including rubber feet and hardware:
420mm Length
290mm Depth
185mm Height
Weight: 11Kgs
