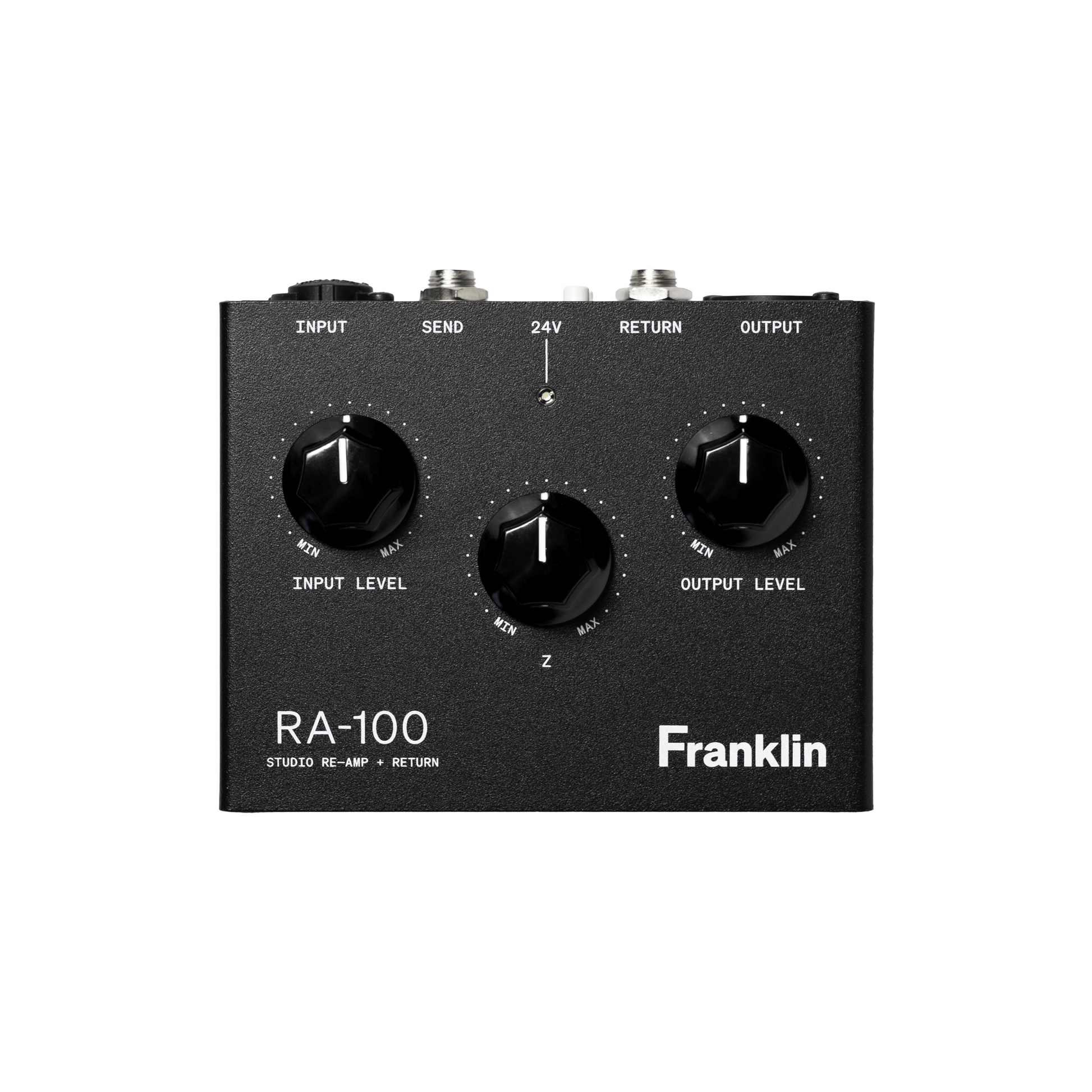

Franklin Audio RA-100 Studio Re-amp and Return

Turn your pedals into studio effects
Send drums through that vintage fuzz, warm up synth tracks with your favorite chorus, or get hands-on with vocal delays using your trusty tape echo. The RA-100 handles both the send and return in one box—route any DAW track through your pedalboard and bring it back with transformer-balanced I/O at both ends. With ultra-forgiving levels, multi-function routing, and a built-in return path that saves you a DI box, we've built the simplest all-in-one solution to unlock your hidden outboard collection.


- Send and return in one unit
- Use your pedals like IRL plugins
- Transformer balanced for massive headroom
- Desktop friendly

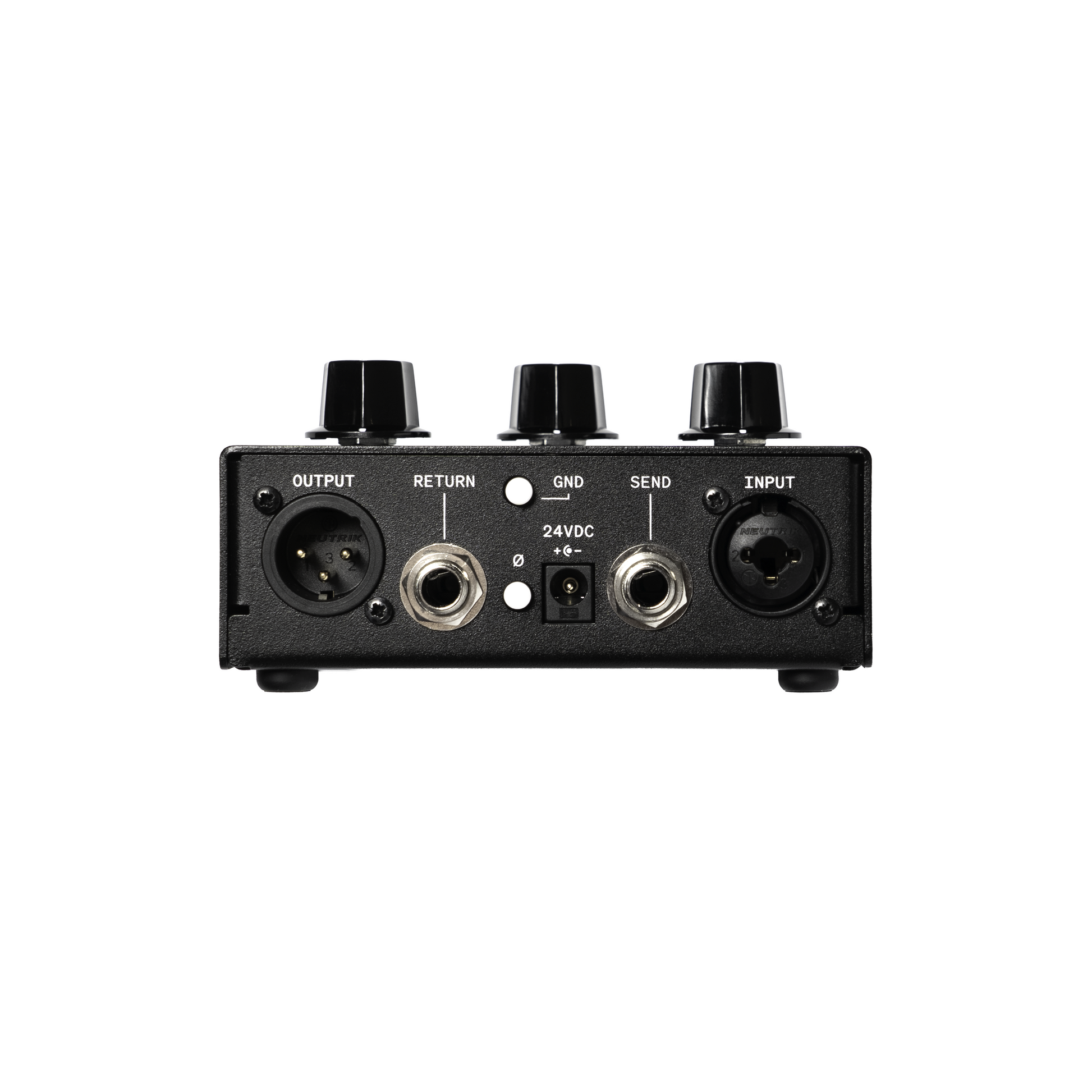

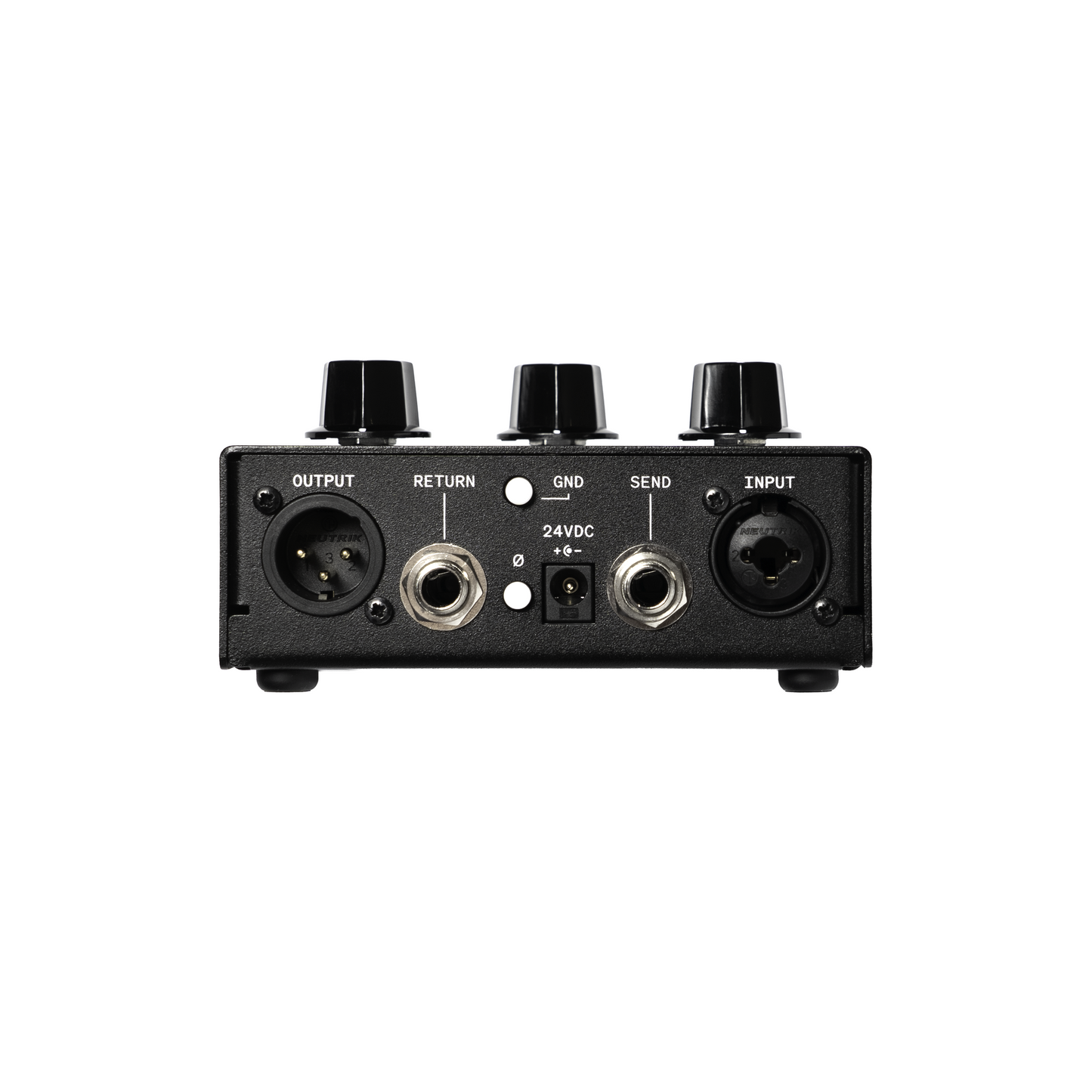

Connections -
Line Level Input
XLR/TRS to receive any balanced mono audio from your audio interface or mixer.

Instrument Level Send/Return -
Mono TS (i.e. guitar lead) jacks to send your re-amped audio to your pedal chain and back again.

Line Level Output -
Balanced XLR output for sending your processed audio back to your interface or mixer.

:::::::::::::::::::
Turn Your Guitar Pedals into Pro Studio Effects

Your pedalboard is packed with amazing sounds, but they're trapped in guitar-only jail. You want to run your drums through that vintage RAT, warm up a synth VST through your favourite chorus, get hands on with vocal delays with your trusty tape echo.

But you're stuck troubleshooting unwanted noise, researching impedance matching, and fighting with levels that clip or disappear. With the RA-100, we've done the signal conversion and gain staging voodoo for you - just plug in and start experimenting.

- Re-Amp Input: 1 x Transformer balanced line input on mono Neutrik balanced combo connector
- Return Input: 1 x High impedance instrument input on Neutrik TS 1/4" jack
- Re-amp Output: 1 x Instrument level output on Neutrik TS 1/4" jack (send)
- Return Output: 1 x Transformer balanced line output on mono Neutrik XLR
- Re-amp Circuitry: Passive, transformer balanced
- Return Circuitry: Active high gain, transformer-balanced preamp
- Heavy duty 1.5mm folded steel enclosure
- Designed and handmade in Sydney, Australia
- Provided 24V DC power supply (works worldwide)
