Ohmless AKC-4

AKC-4 is – after Lorena back in 2013 – their second approach to the perfect Klon. This time Ohmless took it a few steps further and created what we think is the most versatile Klon out there. They made sure to include everything you need to find your unique sound. 4 different clipping options deliver a wide range of possible sounds from low to mid range distortion. The Boost section can be added pre or post overdrive to further shape your sound and stand out in the mix.

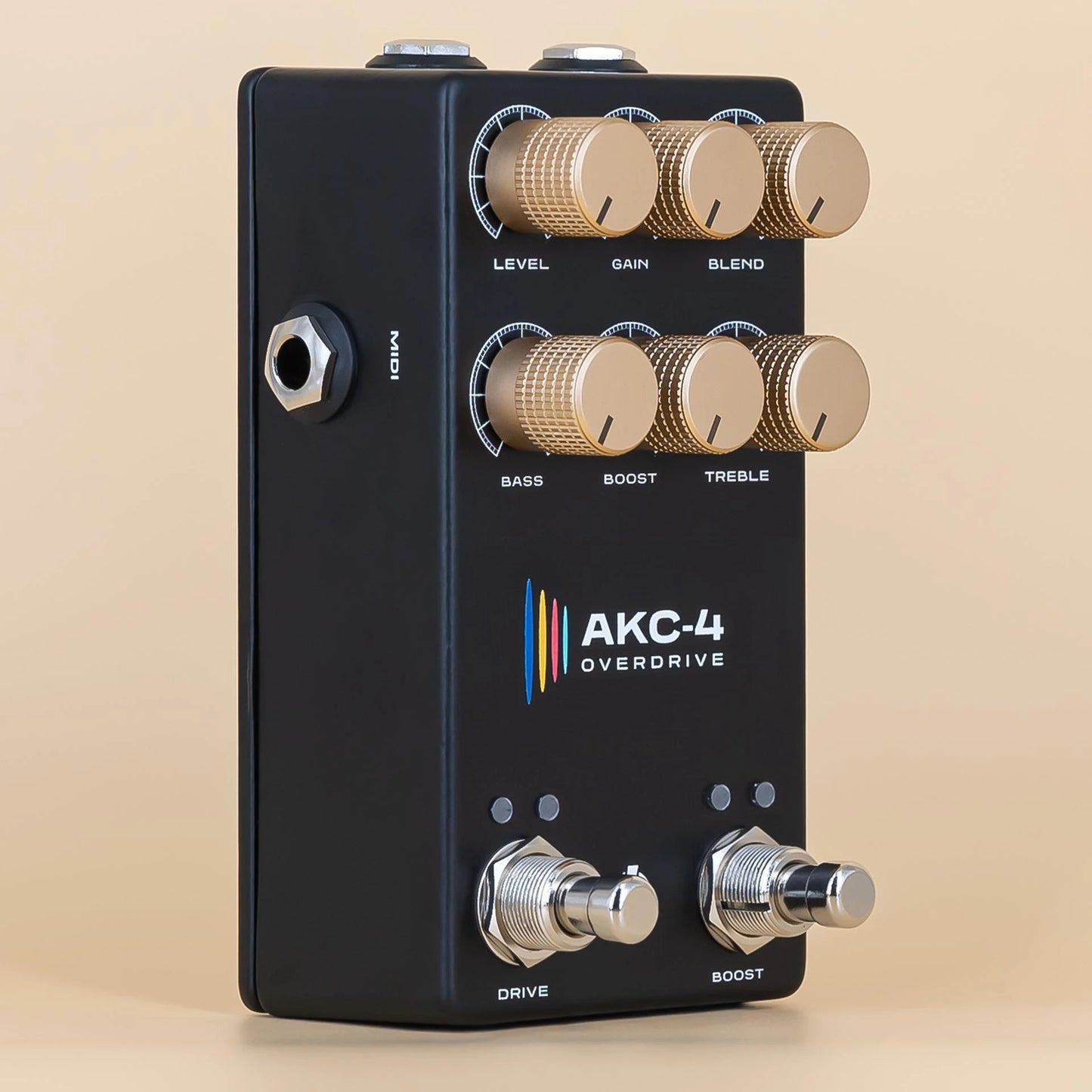

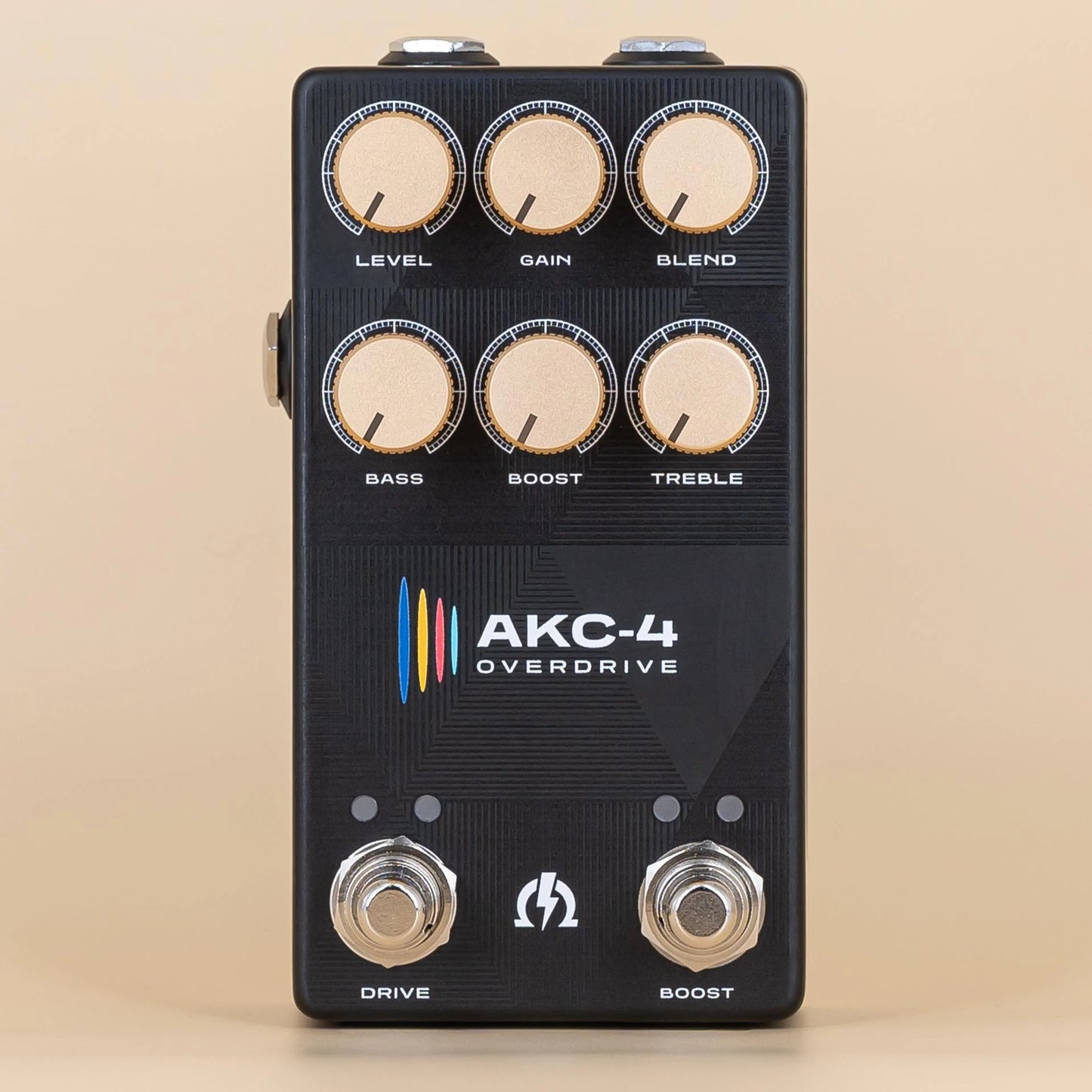

CONTROLS

Volume › Sets the overall output of the drive section of the pedal

Gain › Sets the amount of gain from the drive section that is being applied to your guitar signal

Blend › Mixes the effect signal (Drive and Boost) with the dry signal. Full CCW = 100% effect signal

Bass › Allows you to cut or boost low frequencies. If you want the original Klon feel, this knob needs to be at noon position

Boost › Sets the overall output of the boost section of the pedal. It offers 20dB of clean headroom, starting at unity volume
Treble › Allows you to cut or boost high frequencies

FEATURES

– 4 different clipping options (available via footswitch or MIDI):
Klon clipping
Schottky/Silicone clipping
Silicone clipping
Mosfet clipping

– MIDI functionality for switching operations:
OD on/off
Clipping Options 1-4
Boost on/off
Boost pre or post overdrive

– Boost pre or post overdrive (available via footswitch or MIDI)
– Internal mute circuit (35ms during switching operations) can be activated or deactivated
– Soft Switches
– True Bypass

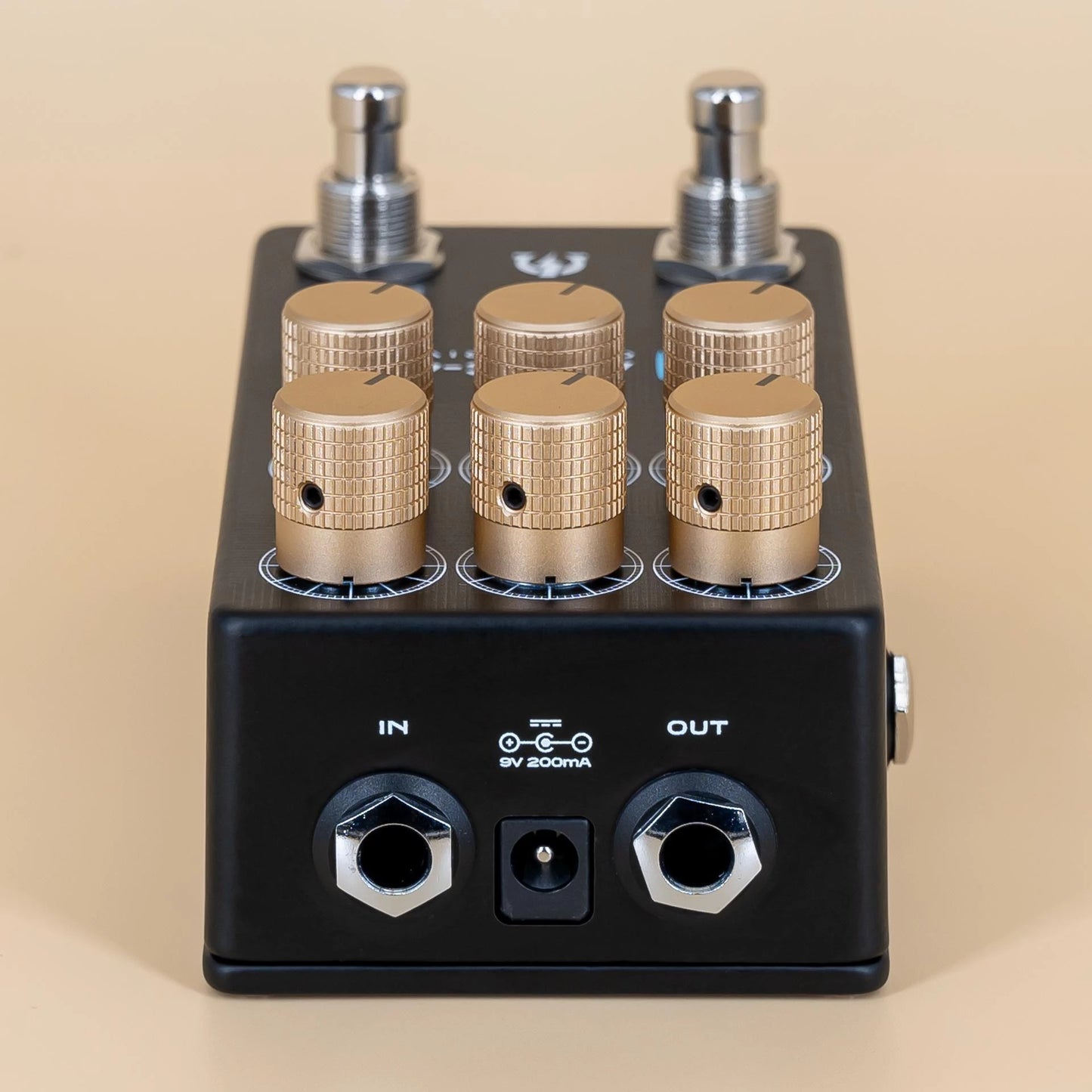

POWER/SIZE

– Operates at 9V, center negative. WARNING: 18V will destroy your pedal!
– No battery support
